Precimade turns your drawing into a finished medical part, inspected to the micron and delivered with its traceability file, from prototype to production.
Explore our implants
Every lot follows the same route, and every step leaves a record. For any delivered part, we can trace the material heat, the machine, the operator and every measurement.
Incoming inspection; every material lot is recorded with its heat number.
Traced material lotCAM, tool selection, routing.
Revision-controlled routingFirst-piece approval, then in-process self-inspection.
Work order · recordsIQ, OQ, PQ: the process proves its repeatability.
IQ/OQ/PQ reportsBead blasting, vibratory finishing, polishing, passivation.
Bath parametersPart number, lot, CE mark and UDI code, laser-marked.
UDIRobotic cell: ultrasonics, baths, rinsing, drying.
Recorded cycleShipped with the complete lot record.
FAI · CoCFrom medical stainless steels to titanium and implantable polymers. Every bar comes in with its certificate and heat number, and that heat number follows your parts all the way to the lot record.
| Material | Status | Typical uses |
|---|---|---|
| Titanium Ti-6Al-4V ELI 3.7165 | Implantable | Dental and orthopedic implants, spinal cages |
| 316LVM stainless 1.4441 | Implantable | Orthopedic implants, screws and plates |
| ISO 5832-9 stainless (M30NW) 1.4472 | Implantable | High-strength implants, pedicle screws; no free nickel |
| PEEK | Implantable | Spinal cages, radiolucent implants |
| UHMW-PE 1020 | Implantable | Acetabular inserts |
| UHMW-PE 1050 | Implantable | Knee inserts |
| X40CrMoVN16-2 stainless (X15TN) 1.4123 | Medical grade | Cutting instruments, drills |
| X3CrNiCuTiNb12-9 stainless (MX455) 1.4543 | Medical grade | Forceps, needles |
| 316 / 316L stainless 1.4401 / 1.4404 | Medical grade | Surgical instruments, instrument sets |
| 17-4PH stainless 1.4542 | Medical grade | Shafts, instruments |
| PPSU (Radel R-5500) | Medical grade | Sterilization cases, handles (over 1,000 cycles) |
| Heat-stabilized PP (Propylux HS, HS2) | Medical grade | Sterilization cases, trays |
| PTFE | Medical grade | Seals, catheters |
Also machined for tooling and industry: 304/304L, X17, Z20C13 and Z30C13 stainless, CuZn37 brass, 7075 aluminum, W360 steel. Your material isn’t listed? Mention it in your request.

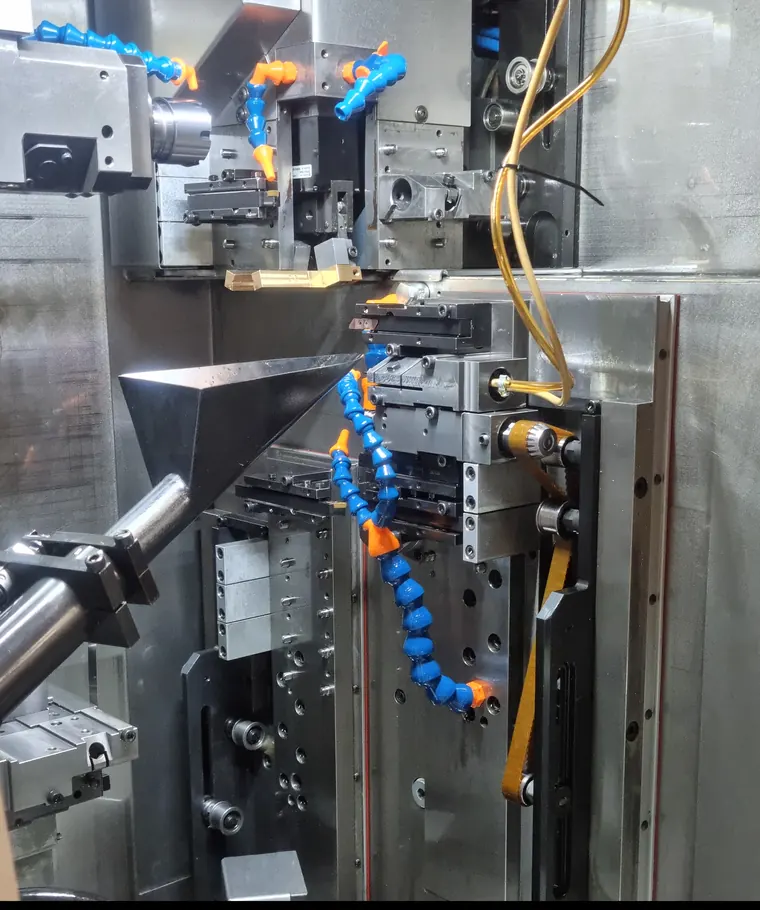

See the material data sheetsFrom high-volume Swiss-type turning to simultaneous 5-axis, across 16,000 sq ft (1,500 m²) in Bourg-en-Bresse. Every part is measured on equipment whose uncertainty stays well below its tolerance.Explore our machines
Three frameworks, one quality system. Your supplier quality team will find the references to verify here; the full file is available on request.
Request the certificate · Verify on Certipedia (opens in a new tab)
Detailed scope in the supplier file.
Precimade is part of Processus Group. Design, prototyping, machining and plastic injection molding are brought together in one group and managed by a single project manager.
Mechanical engineering office (CATIA, SOLIDWORKS, NX, Inventor), 3D printing, design of tooling and inspection fixtures.
Décines-Charpieu (69) (opens in a new tab)
Precision machining of implants, instruments and prototypes. Finishing, UDI marking, cleaning, inspection.
Bourg-en-Bresse (01)
Injection and two-shot molding of technical plastic parts, cleanroom in La Baume-d’Hostun.
La Baume-d’Hostun (26) (opens in a new tab)
Single- and two-shot injection molding, assembly and production machining: the group’s ISO 9001-certified plant in Tunisia.
Sousse (Tunisia) (opens in a new tab)In Bourg-en-Bresse, Swiss-type and mill-turn machinists, finishing operators, metrologists and manufacturing engineers work in the same shop. They draw on Origin 3D’s engineering office and Factory Plast’s molding for projects that go beyond machining.
Join the teamA manufacturing engineer reviews feasibility and replies to you directly, with a quote or ideas to simplify the part.
